SB-50CNC-3A-1S Full-Automatic Three Dimensional Pipe Bending Machine

       Inquire Now

Tags :

--Interactive PLC touch screen offers easy access to auto and manual operating modes.
--System diagnostics and multiple language capability.
--Standard clockwise bending direction.
--Fully hydraulic clamping on clamp die and pressure die.
--Drop-way hydraulic clamping.
--Direct acting hydraulic pressure die with adjustable speed valve.
--Maximum 100 sets of program storage,Maximum 32 bends for each program.
--With Independent programmable speeds Y, B, and C axes.
--Programmable material spring back settings for each bend angle.
--Automatic release of tube prior to final bend.
--Bending Axis-Driven by Servo Motor,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor.
--Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.
--Foot Pedal Cycle start.

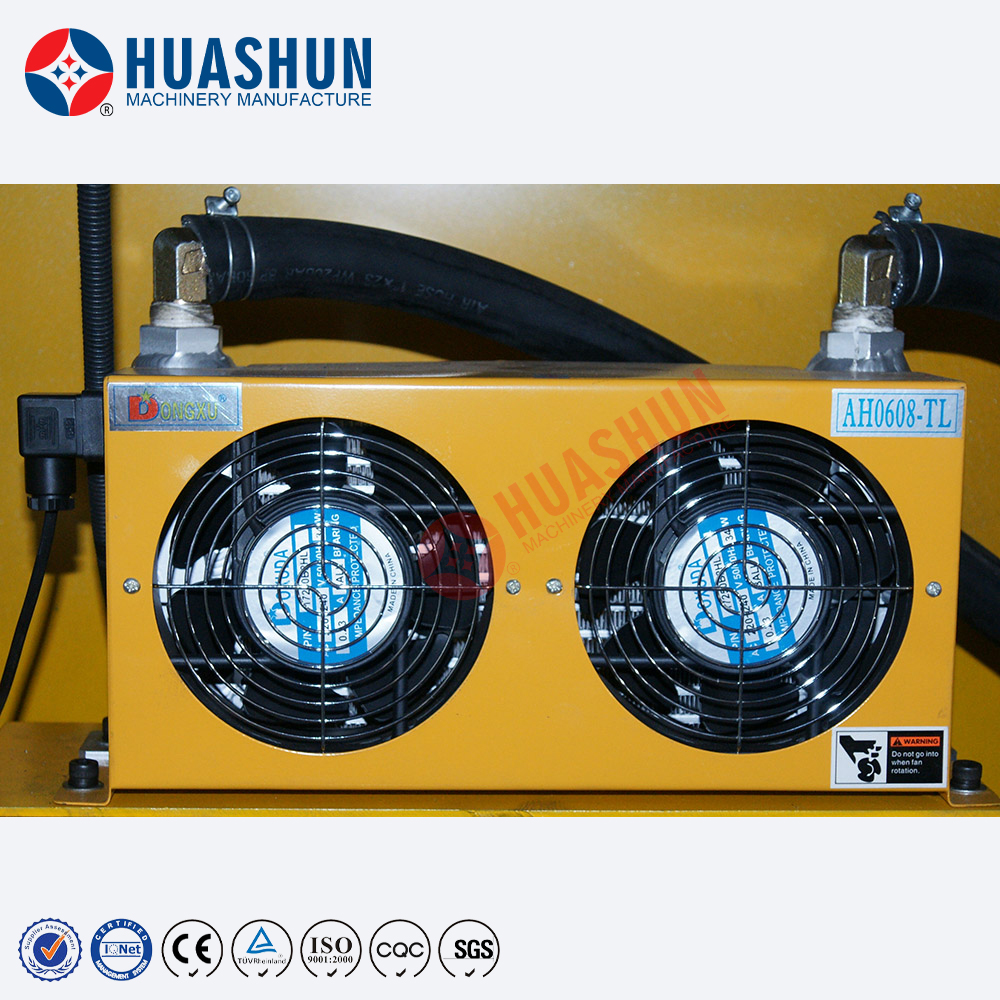

--With Air Cooling System or water cooling system.
--One set of Tooling for Draw Bending.
--Wiper die Bracket.
--1 Mandrel Rod.
--Operation and Maintenance Manual.
--Tool Box with Adjusted Tools.
--Electric: As required (3 phase 220V or 380V or 415V...)
--Industrial Computer Controlling.
--Anticipate Mandrel Extraction.
--Automatic mandrel/machine lubrication.
--Anti-clockwise bending direction.
--Machine effective length over mandrel.
--Safety Mat.
Name Unit Data
Max Bending Capacity Carbon Steel mm Φ50*2.5
Stainless Steel mm Φ44.4*1.6
Light alloy annealed round tube mm Φ50*3
Mild steel square tube mm 35*35*2
Mild steel rectangular tube mm 40*30*2
Mild steel round solid bar mm Φ20
Mild steel square solid bar mm 18*18
Max Bending Radius mm R250
Can customized as per customer’s requirement
Min Bending Radius mm R20
Through Effective Distance Over Mandrel mm 3700
Can customized as per customer’s requirement
Max. One Time Feeding Length mm 2600
Can customized as per customer’s requirement
Max Bending Degree ° 190
Bending Unit pieces 32
Bending Axis Speed Deg/sec 150
Accuracy mm ±0.1
Power KW 7.5 Controlled by Servo Motor
Feeding Axis Speed Deg/sec 1000
Accuracy mm ±0.1
Power KW 1 Cotrolled by Servomotor
Rotating Axis Speed Deg/sec 200
Accuracy mm ±0.1
Power KW 0.4  Cotrolled by Servomotor
Date Input / 1.Coordinate ( X, Y, Z )
/ 2.Working value ( Y, B, C )
Max. Pressure Mpa 16
Max Storage Units Group 1000
Can customized as per customer’s requirement
Machine Dimensions mm 4500*950*1350
Appro. Weight Kgs 2200
