Semi-automatic Pipe Cutting Machine

Semi-automatic Pipe Cutting Machine

MC-355VS

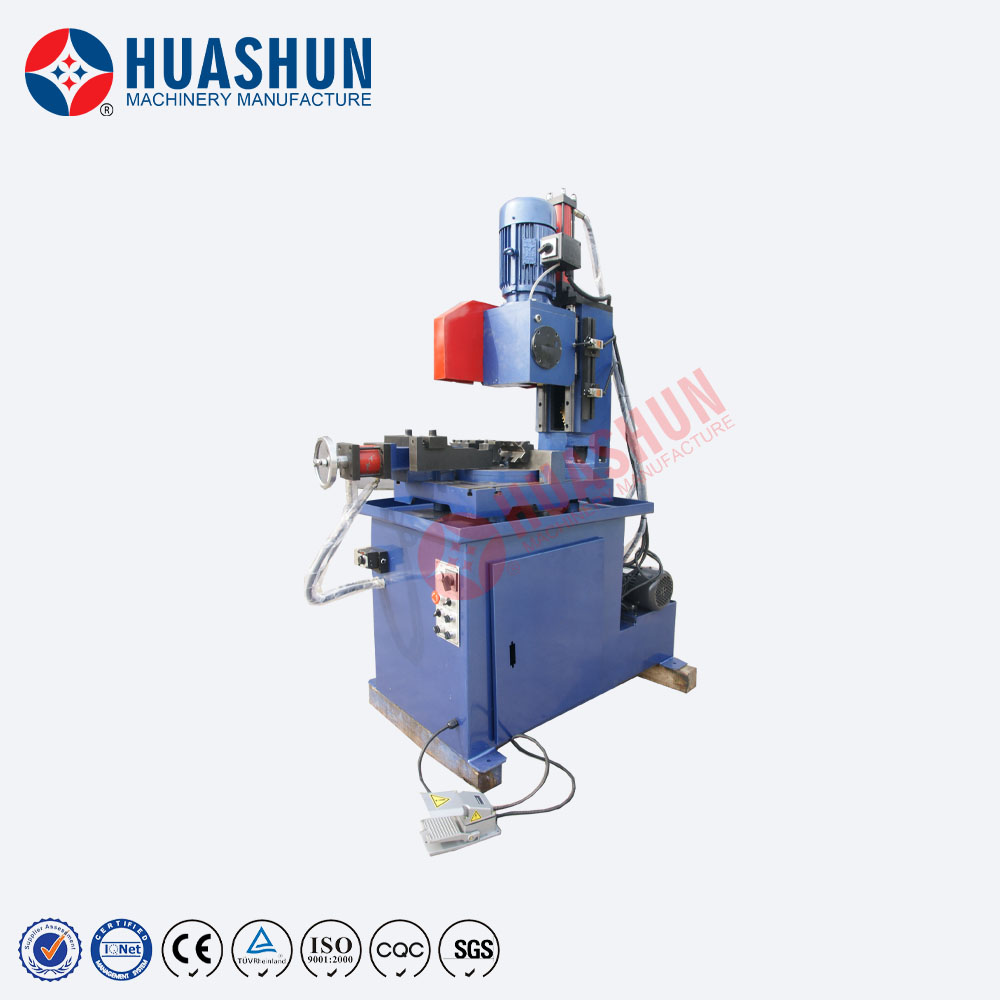

HS-MC-355VS Semi-automatic Metal Circle Cutting Machine

       Inquire Now

Tags :

-- Manual feeding, Hydraulic clamping and Hydraulic cutting.
-- Can be realized angle cutting.
-- Material Available: Carbon Steel,Stainless Steel,Copper,Aluminum...
-- Cutting Shape Available: Round,Square,Rectangle,Solid bar,other profiles...
-- Small Noisy.
-- Clamping, saw blade advancing,backward, clamp releasing are all hydraulic driven.
-- Good cutting quality for tube internal and external without burs.
-- Water cooling and lubricate system prolongs the life of machine and saw blade.
-- Good mechanical parts ensure machine runs in high stability.
-- CE, ISO9001 Certification.
Model MC-355VS
Cutting Capacity   90° (mm) 45°(mm)
guan001.png 120mm 110mm
guan002.png 110*110mm 100*100mm
guan003.png 110*90mm 100*80 mm
guan004.png 110*90mm 100*80 mm
Motor Power 4.5/5.5 KW
Spindle Rotating Speed 70/35 Giri/min
Saw Blade Rotating Speed 60-120RPM
Cooling Pump 40 W
Hydraulic Pump 1.5KW
Hydraulic Pressure 45-70kgf
Machine Dimension 1500*850*1950mm
Machine Weight 750KGS


MC-355VS

 MC-355VS

MC-355VS
MC-355VS
MC-355VS

Factory Direct

Direct Shippment, Direct Price, Direct QC 6000 square meters factory, Over 150 employees work in shift ensure the punctual delivery time.

Good Quality

Received CE, ISO9001, CQC, TUV Certificate. Inspection is carried out all through the production process, warranty card provided.

OEM Service

R&D team is qualified to do customized project, OEM services. Away from Shanghai the biggest sea port of China, only 150KM away.

16Y Export Experience

Export to over 108 countries/region. Our HUASHUN machines are spread all over the world.

MC-355VS
MC-355VS


Sample tube that can be processed
