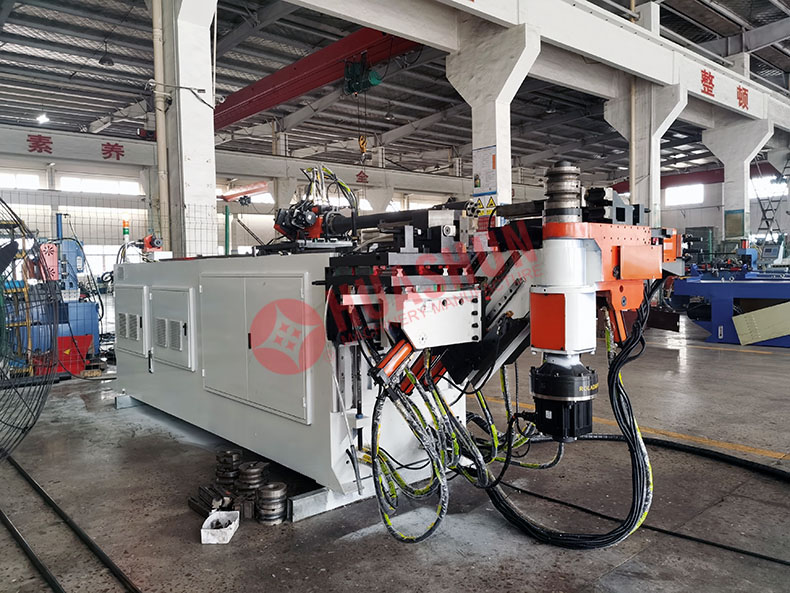

HS-SB-38CNC-5A-3S(LR) Full-Automatic Three Dimensional Pipe Bending Machine

       Inquire Now

Tags :

--Industrial Computer offers easy access to auto and manual operating modes.
--System diagnostics and multiple language capability.
--Left and Right bending direction.
--Fully hydraulic clamping on clamp die and pressure die.
--Direct acting hydraulic pressure die with adjustable speed valve.
--Maximum 10000 sets of program storage,20 or more bends for each program.
--With Independent programmable speeds Y, B, and C axes.
--Programmable material spring back settings for each bend angle.
--Automatic mandrel/machine lubrication.
--Automatic release of tube prior to final bend.
--Bending Axis-Driven by Servo Motor,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor,Left to Right Axis-Driven by Servo Motor,Up to Down Axis-Driven by Servo Motor.
--Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.
--Foot Pedal Cycle start.
--With Air Cooling System.
--One set of Tooling for Draw Bending.
--Wiper die Bracket.
--Operation and Maintenance Manual.
--Tool Box with Adjusted Tools.
--Electric: As required (3 phase 220V or 380V or 415V...)
--Anticipate Mandrel Extraction
--Machine effective length over mandrel
--Safety Mat
Name Unit Data
Max Draw Bending Capacity Mild steel round tube  mm ¢38*2
Stainless Steel(R=1.5D) mm ¢31.75*1.5
Draw Bending Radius Layer Difference mm 80
Rolling Radius Range mm 6D-∞
Through Effective Distance Over Mandrel mm 3200
Can customized as per customer’s requirement
Max. One Time Feeding Length mm 2500
Can customized as per customer’s requirement
Max Bending Radius mm 200
Max Bending Degree ° 190
Bending Unit pieces 32
Bending Axis Speed Deg/sec 150
Accuracy ° ±0.1
Power KW 5 Controlled by Servomotor
Feeding Axis(Rolling) Speed mm/sec 1000
Accuracy mm ±0.1
Power KW 1 Controlled by Servomotor
Rotating Axis Speed Deg/sec 200
Accuracy ° ±0.1
Power KW 0.4 Controlled by Servomotor
Left-Right Axis Accuracy mm ±0.1
Power KW 1 Controlled by Servomotor
Up-Down Axis Accuracy mm ±0.1
Power KW 5 Controlled by Servomotor
Date Input / 1.Coordinate ( X, Y, Z )
/ 2.Working value ( Y, B, C )

Max. Pressure

Mpa 12
Max Storage Units Group 1000
Can be extended as per customer’s requirement

Machine Dimensions

mm 4250*980*1450

Appro. Weight

Kgs 3200
