Automatic Pipe Cutting Machine

Automatic Pipe Cutting Machine

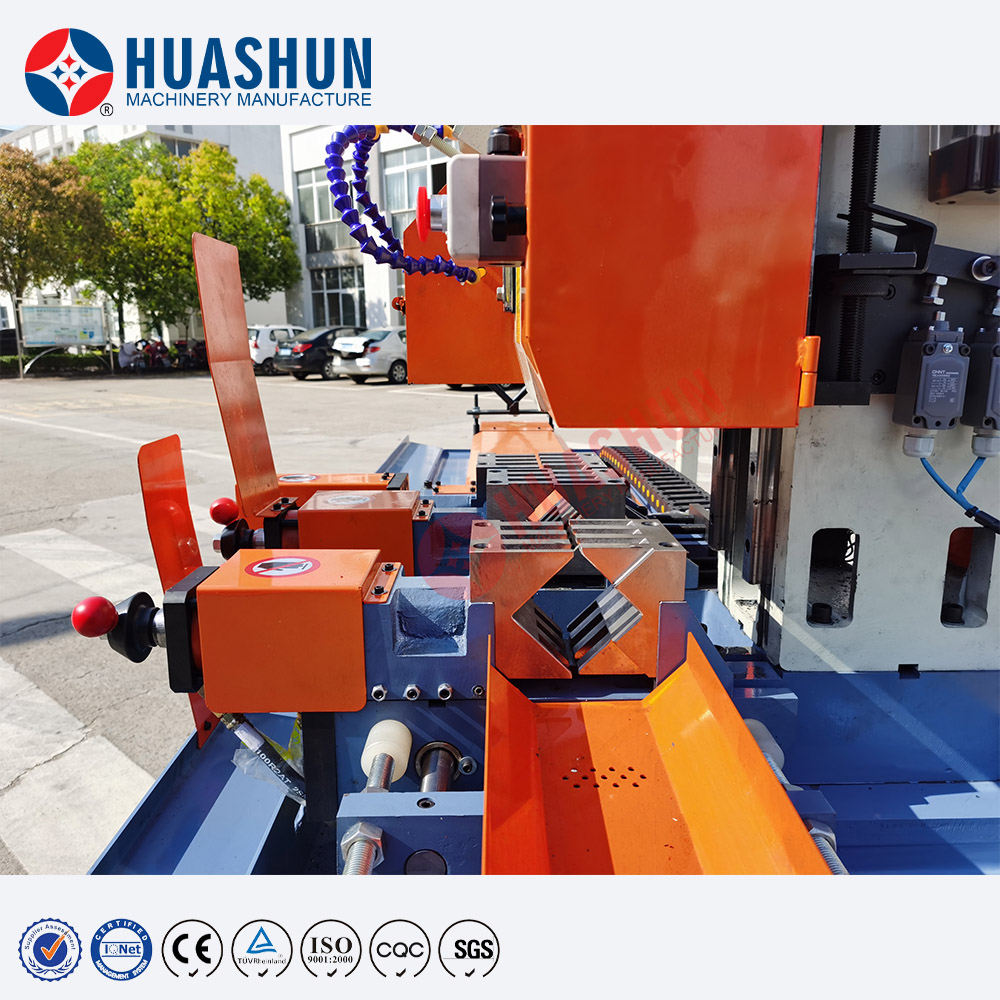

HS-MC-425CNC Automatic Pipe Cutting Machine

       Inquire Now

Tags :

--Automatic Servo Motor Feeding,Automatic Hydraulic Clamping and Automatic Hydraulic Cutting.
--Hydraulic driven saw head for cutting motion.
--Servo Motor Feeding Transmission.
--Interactive PLC touch screen offers easy access to auto and manual operating modes.
--Material Available: Carbon Steel,Stainless Steel,Copper,Aluminum...
--Cutting Shape Available: Round,Square,Rectangle,Solid bar,other profiles...
--Small Noisy
--Clamping, saw blade advancing,backward, clamp releasing are all hydraulic driven.
--Good cutting quality for tube internal and external without burs.
--Water cooling and lubricate system prolongs the life of machine and saw blade.
--Good mechanical parts ensure machine runs in high stability.
--CE, ISO9001 Certification
Model MC-425CNC

Cutting Capacity

guan001.png  120*10mm
guan002.png  80*80*7mm
guan003.png  120*90mm
guan004.png  120*90mm
guan007.png  16*16mm,25pcs one time
Motor Power 3.5/4.2KW
Hydraulic Pump Motor Power 2.2 KW
Cooling Pump 90 W
Servo Motor Power 1KW
Feeding Accuracy +/- 0.1mm
Feeding Length 5-1500mm/one time
Saw Blade Size 275/300/315/350/400/500
Machine Dimension 3500*1300*1700
Machine Weight 1750KGS



Factory Direct

Direct Shippment, Direct Price, Direct QC 6000 square meters factory, Over 150 employees work in shift ensure the punctual delivery time.

Good Quality

Received CE, ISO9001, CQC, TUV Certificate. Inspection is carried out all through the production process, warranty card provided.

OEM Service

R&D team is qualified to do customized project, OEM services. Away from Shanghai the biggest sea port of China, only 150KM away.

16Y Export Experience

Export to over 108 countries/region. Our HUASHUN machines are spread all over the world.


Sample tube that can be processed
